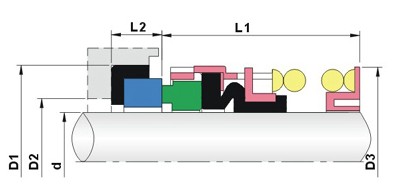

T1 Mechanical Seal

The T1 Mechanical Seal is a replacement for the JBurgmann MG901/ D1-G55.


Aesseal P05U seal

John Crane type 1 seal

Flowserve 51 seal

US Seal E seal

Vulcan A5 seal

Temperature: -20℃ to +120℃

Pressure: ≤1.4MPa

Speed: ≤15m/s

Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide

Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide

Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)

Cleans Water, Sewage Water, Oil and other moderately corrosive fluids

T1 Mechanical Seal, Elmira Pump

T1 Mechanical Seal, Elmira Pump
